|Material:||Melamine,wooden||Application:||Multi-function hall,restaurant,banquet hall,conference room,hotel|
|Thickness:||85 mm||Width:||500/1200 mm|
|Height:||6 m||Structure:||Aluminum Track,Trolley Bearing,Acoustic Door Panel|
|Product name:||Movable partition wall||Certificate:||ISO9001|

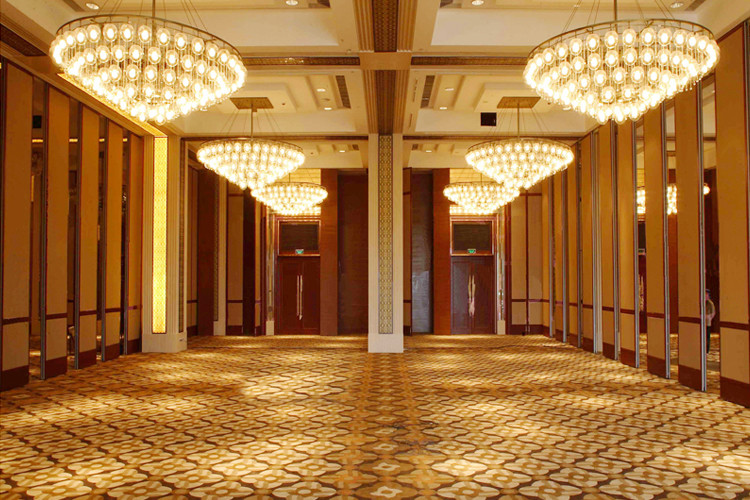

Custom Design Commercial Furniture Movable Partition Walls for Multi Function Hall
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Combines elegance with robust construction.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Sealed for life roller assemblies provide smooth and silent movement.
The system offers various levels of sound reduction.
Extensive range of surface finishes available.
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
2010 Spring and Autumn Canton Fair/ Big Five in Dubai
2011 Big Five in Dubai/ Spring and Autumn Canton Fair
2012 March Brazil Fair and April Canton Fair/ July South Africa Fair/ Aug. Jordan Fair/ Oct. Canton Fair
2013 Spring Canton Fair/ Autumn Canton Fair
2014 Spring Canton Fair/ Autumn Canton Fair
2015 Spring Canton Fair /Autumn Canton Fair
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
