|Panel width:||500 mm--1220 mm (Accept Customized)||Material:||MDF+Aluminum|
|Application:||Hotel,office ,conference room||Color:||Color Selective (Customized)|
|Thickness:||65 mm(2 9/16 inch)||STC conffcient:||32/50db|
|Feature:||Voice Insulation||Finishing:||Melanimine,fabric,leather etc.|

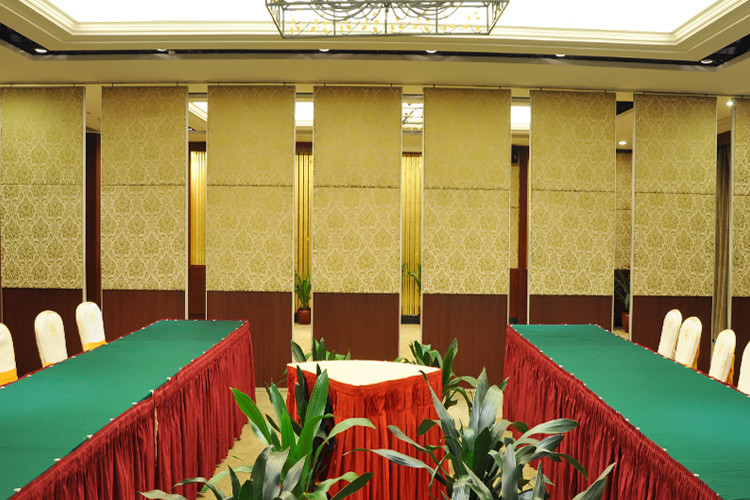

High Quality Exhibition Aluminum Operable Partition Walls with Sliding Doors
1> sound proof board is modernized decoration style. It can separate the space speedly and
conveniently. And it has sound insulation and heat insulation and fireproof function;
2> The Partition Board is made from high density s/s frame, special made rubber, excellent sound
insulation cotton and finish board etc. the finish board is flat and hard;
3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the
board can be stored in may different ways;
4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the
same plane with the ceiling decoration. It won’t affect the whole decoration style;
Movable acoustic soundproof office partition folding wood doors
1)Thickness panel:65mm,80mm,100mm, height from 2meter to 17meter
2)Top supported without floor track or guide
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
Bunge Operable Wall Systems-Technical Information
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
Suitable used in:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
