Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors

Chiny Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors dostawca
Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors dostawca Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors dostawca Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors dostawca

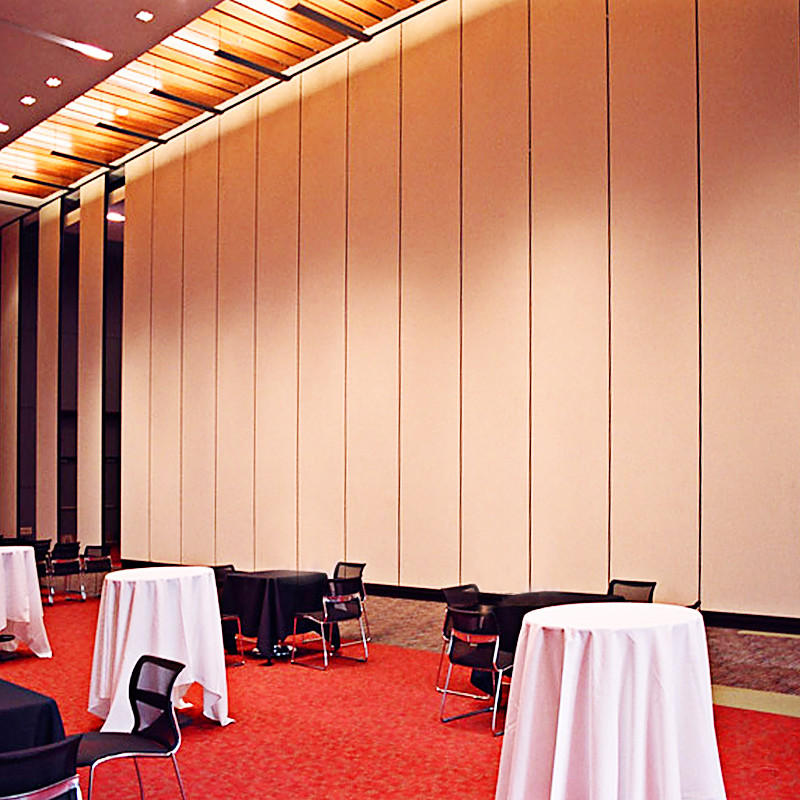

Duży Obraz :  Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors

Szczegóły Produktu:

Place of Origin: Guangdong
Nazwa handlowa: BUNGE
Orzecznictwo: ISO9001
Model Number: Series 65 mm folding internal doors

Zapłata:

Minimum Order Quantity: 10 squaremeters
Cena: 72/ 105 dollars per square meter
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 squaremeters per month
Contact Now
Szczegółowy opis produktu
Panel width: 500 mm--1220 mm (Accept Customized) Material: MDF+Aluminum
Application: Office,conference room Color: Color Selective (Customized)
Thickness: 65 mm(2 9/16 inch) Finishing: Melamine,fabric,leather
Style: Opening Position: Interior
Service: OEM ODM Product name: Folding internal doors

Floor to Ceiling Hanging System Sliding Movable Folding Internal Doors



1,PREPARING

1)constructing location: keep dry, the temperature should be higher than 10'C, the widest humidity range should confined to 40%-60% after construction 24 hours before constructing, the location should reach the standards as above.

2)acoustic panels: for the acoustic panels accommodated to the circumstance of constructing, please place the panels in the constructing location for 48 hours, check up the type, specification and amount of the panels before constructing.

3)keels: fix the keels on the wall flatly according to the plan, the keels should be flat, slick, no rust, no metamorphosis; the wall must be construct according to the standards, the keels suitable install with acoustic panels, leave smaller than 500mm space between each wooden keel(smaller than 600mm of light steel keel), install the keels vertically with acoustic panels.

Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors

Bunge Operable Wall Systems-Technical Information

TYPE BG65 BG85 BG100 & BG125
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M

Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors

Features:

Concealed or exposed panel edge profiles


Numerous panel stacking options for complete flexibility


Sealed for life roller assemblies provide smooth and silent movement


The system offers various levels of sound reduction


Extensive range of surface finishes available

Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors



Common Applications:

1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.

Floor to Ceiling Hanging System Movable Folding Internal Sliding Doors
