Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor

dobra jakość Ruchome ściany działowe na sprzedaż
dobra jakość Ruchome ściany działowe na sprzedaż
We had installed the partition wall - it worked out well and our customer is happy. So we would like to thank you for delivering high quality goods an

—— Frank

I am so glad to cooperate with Bunge. Their products with good quality and pretty competitive price. My customers like it very much.

—— Grace

We have a lot of business with Bunge since 2011 ,I hope we have more orders and they continue to give our best service and quality.

—— Roger

Bunge is very serious and responsible supplier , partition walls have good quality and high sound proof .

—— Charles

Im Online Czat teraz

Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor

Chiny Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor dostawca
Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor dostawca Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor dostawca Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor dostawca

Duży Obraz :  Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor

Szczegóły Produktu:

Place of Origin: Guangdong
Nazwa handlowa: BUNGE
Orzecznictwo: ISO9001
Model Number: Acoustic wall panels

Zapłata:

Minimum Order Quantity: 100 square meters
Cena: US Dollars 10 - 36 per square meter
Packaging Details: Cartons or according to customer's request
Delivery Time: 7 - 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200000 square meters per month
Contact Now
Szczegółowy opis produktu
Material: MDF Board Service: OEM,ODM
Fire resistance: China Standard Class B1 Application: Church,court room,KTV
Position: Interior Surface: Melamine,Veneer
Product name: Acoustic wall panels Color: Accept customized
Thickness: 12 / 15 / 18 mm

Features:

  • Excellent sound absorption and noise decrease, especially to low and middle
  • frequency.
  • Available tailor-made in choice of pattern, color and veneer.
  • Create a special visual effect.
  • Environmentally friendly
  • Not contain formaldehyde, harmful substances such as heavy metals; non radioactive
  • Volume resistivity is 1×106~1×108Ω,which can effectively prevent the electrostatic discharge phenomenon. It also can reduce the dust adsorption that will purify the indoor air and save maintaining cost.
  • Inorganic material, A1 fireproof rating
  • Waterproof, damp-proof, anti-moth, antifungal and antibacterial. The strength does not slow down even in wet places
  • Comparing to conventional sound absorption materials, the maintaining cost of this product is much low, and also have a long life.
  • easy to install

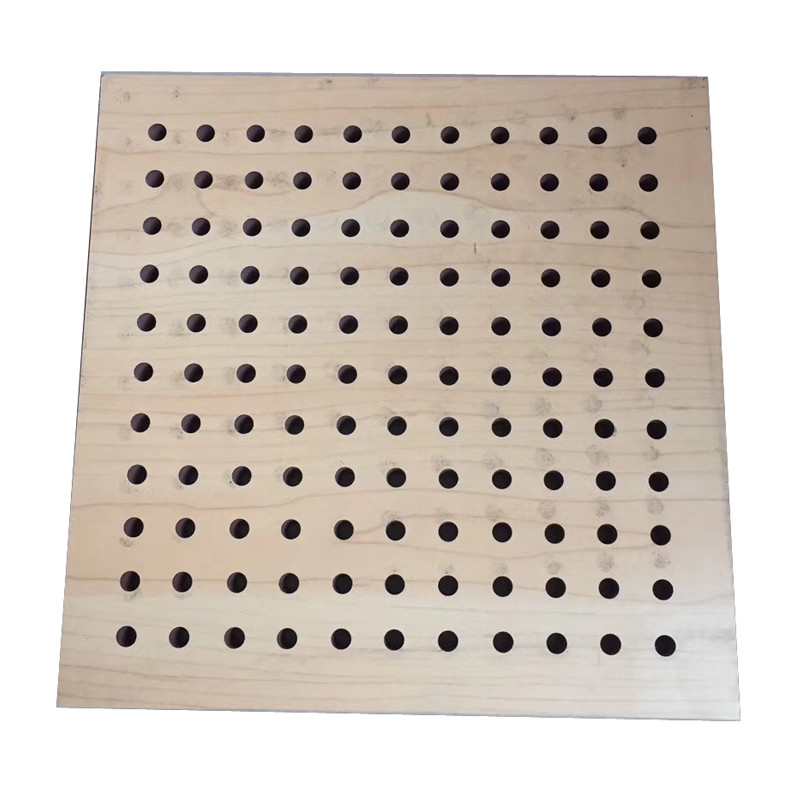

Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor

Product Description:


Brief introduction

BANGE Perforated Acoustic Panel is used high quality magnesium cement as its substrate material, then paint emulsion paint of acrylic acid on it, and cover high quality anti-dust cloth on the surface at last.

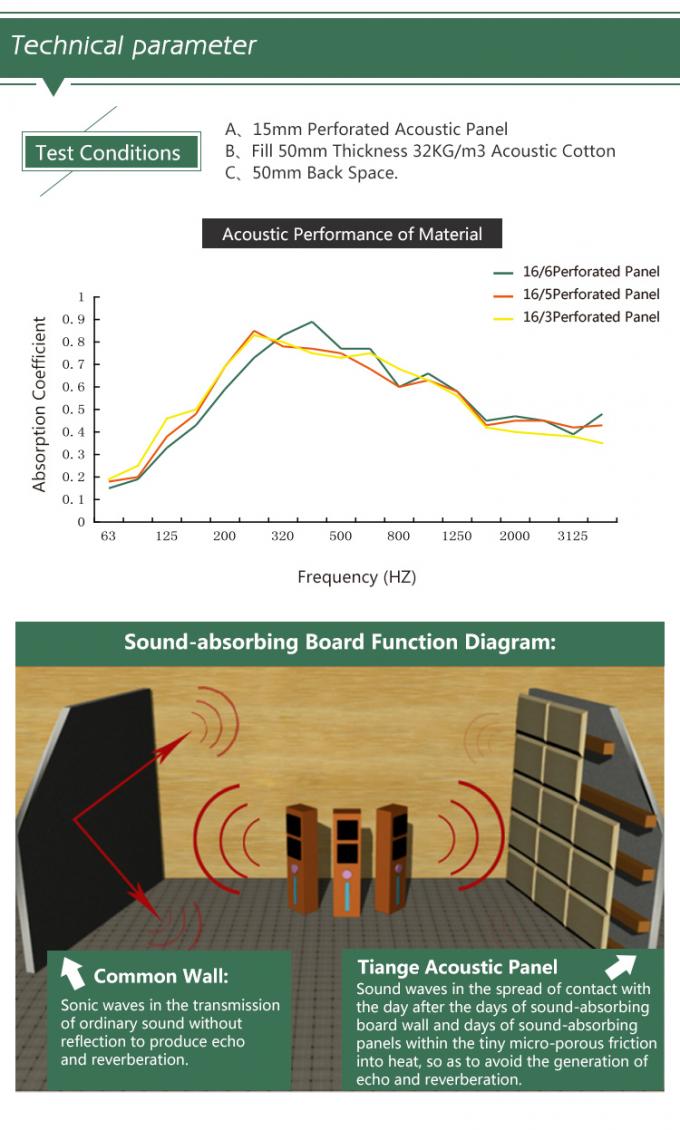

A first grade incombustible sound- absorbing board to have durability strong against heart, moisture and shocks, being economical, and to show high sound absorption rate(250~1000Hz) in medium/low frequency bands, as an harmless and eco-friendly material without mold or bacterium propagation, as well as a perforated board with optimal porosity rate on a natural inorganic(magnesium).



Materials

Base material: MDF board

Surface material: black painting

Back material: black non-woven cloth

Bending strength 15Mpa (GB/T7019-1997)
Density 0.9-1.2g/cm3
Absorbing water rate 15% (JC688-1998)
Fireproof characteristic A grade not combustible (GB8624-1997)
Thermal resistance 1.14m2K/W (GB/T13475-92)
The corner is dealt with Bright shelf platform/drops
Security 100% does not include such harmful substance as the asbestos and etc
Radioactivity Not limited by the scope of application (GB6763-2000)
Size of perforated gypsum board 197*2440*12mm, 197*2440*15mm
Packing of gypsum board Carton


Hot sale soundproof perforated wood acoustic wall panel for conference room

Installtion Method:

1> First fix the aluminum profile onto the wooden frame or bottom board, and their distance suggested 6about 600mm.

2> Filled the 32-64kg/m density acoustic foam among aluminum profiles.

3> Use the clips to fix the perforated acoustic panel to the aluminum profile.

4> When install several acoustic panel, the distance between noses to noses suggested 2-3mm.

5> If install the acoustic panel in the horizontal way, then the notch of the panel should face down, and it need to be fixed tight with clips. After that install pieces and pieces of acoustic panel onto the lowest one.

Soundproof fiberglass insulation wooden board perforated acoustic wall panel

Applications :
Theater, cinema, recording studio, office, television broadcasting station, gymnasium,
conference hall, multifunction hall, recording studios, cinema, boardrooms,theatres, churches, court rooms, hotel foyers, reception areas, schools, KTV and villa
Sound Insulation Perforated Wood Acoustic Panels Wall Boards Indoor
