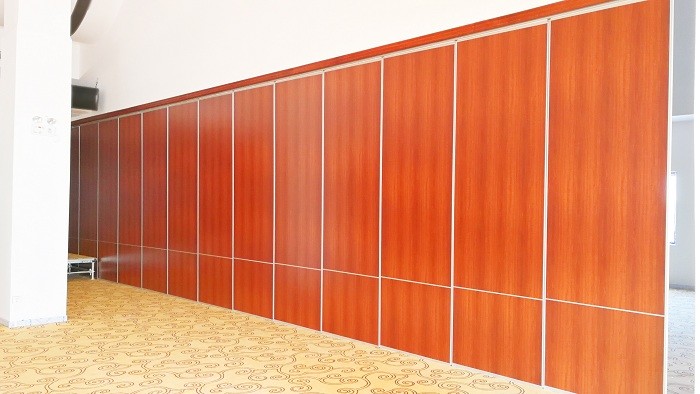

Commercial Wooden Room Dividers / Meeting Room Partition Wall
Szczegóły Produktu:
Place of Origin: | China,Guangzhou |
Nazwa handlowa: | BUNGE |
Orzecznictwo: | ISO9001 |
Model Number: | Series 65 mm office partition wall |
Zapłata:
Minimum Order Quantity: | 10 square meters |
---|---|
Cena: | 83 / 129 dollar per square meter |
Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 square meters per month |
Szczegóły informacji |
|||
Function: | Soundproof | Height: | 4 m |
---|---|---|---|
Panel Type: | Melamine | Open Style: | Folding |
Width: | 500-1200 mm | Service: | OEM Service |
Thickness: | 65 mm | Application: | Office,meeting room |
Metal type: | Aluminium | Color: | Multi color |
High Light: | acoustic operable wall,movable acoustic partition walls |
opis produktu
Commercial Wooden Room Dividers / Meeting Room Partition Wall
Sliding Door Track Roller Office Partition Wall
Description:
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Operation:
When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
Technical information:
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 80mm / 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Our service:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
Aluminium accessories details:
Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
