Sound Proof Doors Folding Panel Partitions Metal Partition Frame Ceiling

Chiny Sound Proof Doors Folding Panel Partitions  Metal Partition Frame Ceiling dostawca

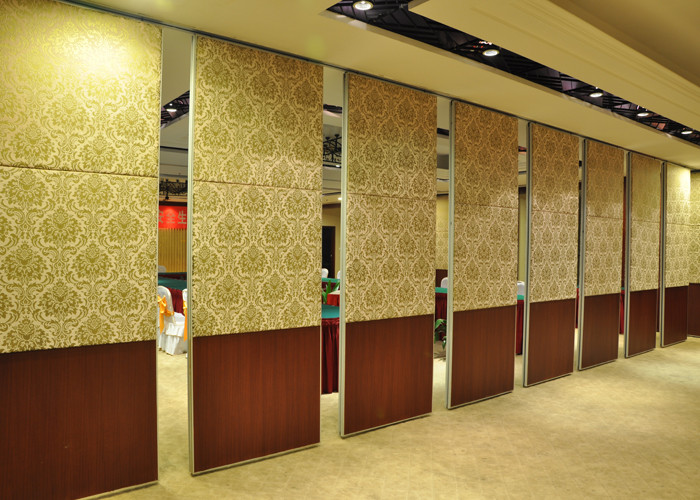

Duży Obraz :  Sound Proof Doors Folding Panel Partitions Metal Partition Frame Ceiling

Szczegóły Produktu:

Place of Origin: China (Mainland)
Nazwa handlowa: BUNGE
Model Number: Type85

Zapłata:

Minimum Order Quantity: 10 Square Meters
Cena: US $ 100 - 300 / Square Meter
Packaging Details: Carton package , MDF batten on four section sides , foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Contact Now
Szczegółowy opis produktu
Thickness mm: 85mm Weight kg/m2: 28 / 43
Max Panel Height: 6000mm Max Opening Width mm: any
Frame: Aluminum Panel Construction / Seal: Operable





Room Folding Partition Walls , Sound Proof Doors , Metal Partition Frame Ceiling





Specifications :



Technical Parameter for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 6000mm

Sound proof

36 - 42db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

28 - 40 kg / sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual





The Special Point Processing On Movable And Operable Partition System



(1).Horizontal seals



The principle of double skin construction on movable and operable partition system is applied consistently in the seal area in order to ensure maximum sound insulation . A spindle mechanism presses extendable, spring loaded, double seals against the fl oor and the ceiling track . Any irregularities in the fl ooring are offset by spring-loaded double chamber seals . The contact force of the sealing strips does not place excessive strain on screed fl oors , but does ensure that the Variflex system is sufficiently stable to prevent the panels moving , even in the event of an attempted forced entry .





(2).Corner seals



Variflex resolves the technical issue of corner seals with specially designed, corner pieces that also reinforce the stability and sound insulation properties of movable and operable partition system





(3)Magnetic strip



The individual panels are centred via the magnetic strips to guarantee sound positive locking and sealing.



Operation :



Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.





Track :



The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .



Trolley



BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .



Sound Proof Doors Folding Panel Partitions  Metal Partition Frame Ceiling



Sound Proof Doors Folding Panel Partitions  Metal Partition Frame Ceiling
