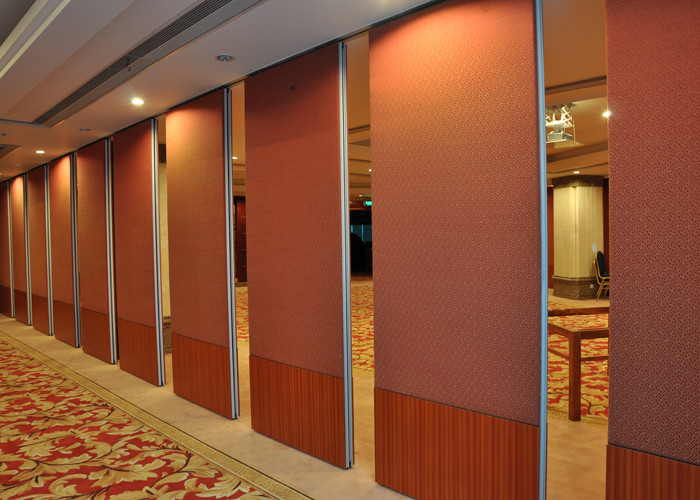

Multi-Purpose Room Internal Bi Fold Doors , Sliding Internal Doors For Meeting Room

Chiny Multi-Purpose Room Internal Bi Fold Doors , Sliding Internal Doors For Meeting Room dostawca

Duży Obraz :  Multi-Purpose Room Internal Bi Fold Doors , Sliding Internal Doors For Meeting Room

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: BUNGE
Model Number: BG65

Zapłata:

Minimum Order Quantity: 10 Square Meters
Cena: US $ 100 - 300 / Square Meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Contact Now
Szczegółowy opis produktu
Material: Aluminum Thickness: 65mm
Surface: Melamine Type: Sliding Doors
Sound proof: 32db Collect: Folding




Multi-Purpose Room Movable Partition ,  Folding Internal Doors For Meeting Room


Specifications:

Technical Parameter
 for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 4000mm

Sound proof

32 - 38db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic
 strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material,
Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

22  -35 kg / sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual



Description :
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.


Operation :


Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.


Panels :

The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
Basic Panels shall be equal in module.
Approx. Weight kg/ square meter        :  25 kg
Maximum height                                 :  4000mm.

Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)

Retractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode.  Single crank type mechanisms shall activate floor and head seals.



Seals:

Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.


Multi-Purpose Room Internal Bi Fold Doors , Sliding Internal Doors For Meeting Room



Multi-Purpose Room Internal Bi Fold Doors , Sliding Internal Doors For Meeting Room
