    Manual Aluminum Temporary Partition Wall For Exhibition Plywood

    Szczegóły Produktu:

    Place of Origin: China
    Nazwa handlowa: BUNGE
    Model Number: exhibition partition wall series 65


    Minimum Order Quantity: 10 Square Meters
    Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T
    Supply Ability: 5,000 Square Meters per Month
    Najlepsza cena Kontakt

    Szczegóły informacji

    Surface Finishing: Fabric Surface: Wooden
    Sliding Door Type: Partition Doors Open Style: Sliding
    Max Opening Width mm: Any Panel Widths mm: 500 - 1230
    High Light:

    acoustic folding partition


    soundproof folding partition

    opis produktu

    Manual Aluminum Temporary Partition Wall For Exhibition Plywood


    Leather Surface Decorative Operable Wall , Hanging Exhibition Partition Wall
    >>Features & Benefits
    >>Panel suspension:  Movable, top hung system without the need for a floor track
    >>Panel width:  Each panel 600mm to 1200mm
    >>Roller on panel:  Single roller or double roller
    >>Soundproof rate:  32Db, 38dB,43dB,48dB,53dB Rw
    >>Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height
    >>Track: Aluminum track or steel track
    >>Top & bottom seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
    >>Panel stacking: Numerous panel stacking options for complete flexibility
    >>Panel surface: MDF, Plywood, Wall paper, Fabric, Leather, Natural wood veneer, Melamine, Wood moldings, etc.


    Technical Parameter
     for Partition Panel

    Panel Width

    500 - 1230mm

    Panel height

    2000 - 4000mm

    Sound proof

    32 - 38db





    Vertical profile

    Anodised aluminum profiles with integrated magnetic
     strip and sealing edges on the inside

    Finish options

    Fabric, veneer, HPL melamine, vinyl, carpet, customers own material,
    Bare finish

    Base options

    Plywood, Gypsum, steel, MDF

    Max width


    Panel weight

    25 - 40 kg / sq

    Pass door selection


    Single or double door






    The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.
    Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
    The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.

    BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.
    Aluminum trim: The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.
    Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
    Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
    Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.
    The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.

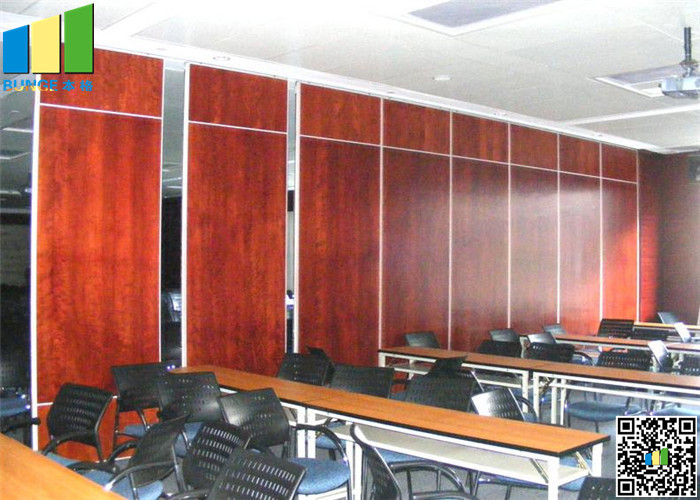

    Manual Aluminum Temporary Partition Wall For Exhibition Plywood 0
