Large Pavilion Hall Temporary Foldable Partition Wall High Sound Proof

Chiny Large Pavilion Hall Temporary Foldable Partition Wall High Sound Proof dostawca

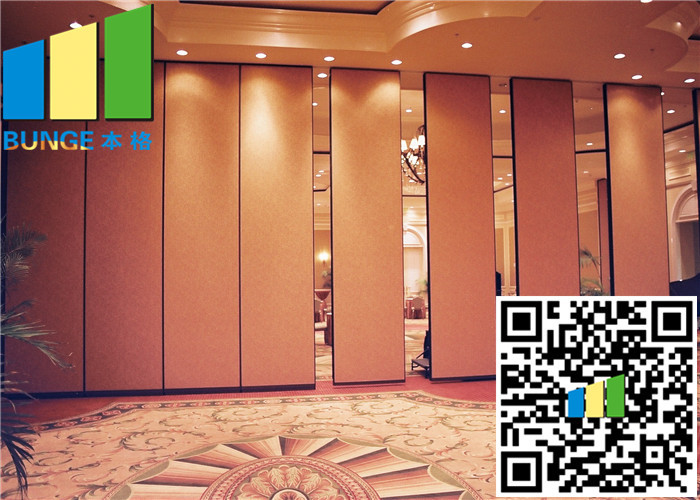

Duży Obraz :  Large Pavilion Hall Temporary Foldable Partition Wall High Sound Proof

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: BUNGE
Model Number: sound proof partiition series 65


Minimum Order Quantity: 10 Square Meters
Cena: US $ 100 - 300 / Square Meter
Packaging Details: Carton package , MDF batten on four section sides , foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Contact Now
Szczegółowy opis produktu
Material: MDF , Leather , Melamine , Fabric , Wall Paper Open Style: Folding Operable Partition System
Thickness: 3.35inch Height: 79 - 237 inch
Acoustic Rating (RW): 32 / 38 dB Type: Movable And Operable Partition System


Large Pavilion Hall Temporary Folding Partition Wall With High Sound Proof



Track :
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .



Hotel conference room activity partition active partiton wall manufacturer
(Used in
conference room, office room, functional room and etc.)


Bunge movable wall partition is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 65mm ,80mm and 100mm,and a width up to 1230mm.Maximum height can reach 17meter tall.


The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.


There are wide of range face finishes are available :melamine faced MDF or Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white boad ect.,panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.




Technical Parameter for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 4000mm

Sound proof

32 - 38db





Vertical profile

Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width


Panel weight

28 - 45 kg / sq

Pass door selection


Single or double door








1)Thickness panel:65mm,85mm,100mm,  height from 2meter to 17meter

2)Top supported without floor track or guide

3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available

4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side

5) Available in wide range of finishes.

6) Fast delivery and Rich experiences in oversea project installation guide & supervision.


The Accessories Of Movable And Operable Partition System
Our movable and operable partition system accessories are custom for each client and project , and they are also made of superior material. Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test, we have passed the Eco-protection test and Fireproof test , to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system .
Operable Partition System Application :
It's widely used at huge stadium, cinema, meeting room , office room, music hall , theather and work shops etc . any places where need sound absorption can use this products .
Operation :
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.



Bunge works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.
