High Movable Partition Walls Operable Sliding Door For Banquet Hall

High Movable Partition Walls Operable Sliding Door For Banquet Hall

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: BUNGE
Model Number: 2.56inch ( 65mm )

Zapłata:

Minimum Order Quantity: 10 Square Meters
Cena: US $ 100 - 300 / Square Meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 5,000 Square Meters per Month
Najlepsza cena Kontakt

Szczegóły informacji

Material: Aluminum Frame Thickness: 2.56inch ( 65mm )
Surface: Fabric , Melamine , Wall Paper, Wooden Type: Sliding Doors
Application: hotel , hall .meeting room and so on Open Style: Sliding and Folding
High Light:

movable partitions systems

,

acoustic movable walls

opis produktu

High Movable Partition Walls Operable Sliding Door For Banquet Hall


Best Quality High Movable Partition Walls , Operable Sliding Door For Banquet Hall


Description :
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.

 Applications :

Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .

Specifications:

Technical Parameter
 for Partition Panel

Panel Width

500 - 1230mm

Panel height

2000 - 6000mm

Sound proof

36 - 42db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic
 strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material,
Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

25 - 40 kg / sq

Pass door selection

door

Single or double door

Seals

Top

Manual

bottom

Manual




Luxury large restaurant functional operable partition wall

1) Thickness panel: 65mm ,85mm ,100mm ,  height from 2meter to 17meter
2) Top supported without floor track or guide
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side
5) Available in wide range of finishes.
6) Fast delivery and Rich experiences in oversea project installation guide & supervision.

Operation :
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.


Track :

The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .


Trolley

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .

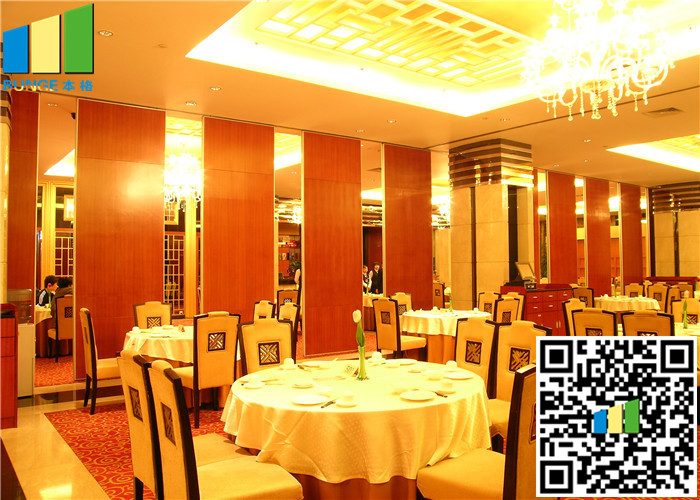

High Movable Partition Walls Operable Sliding Door For Banquet Hall 0

High Movable Partition Walls Operable Sliding Door For Banquet Hall 1
