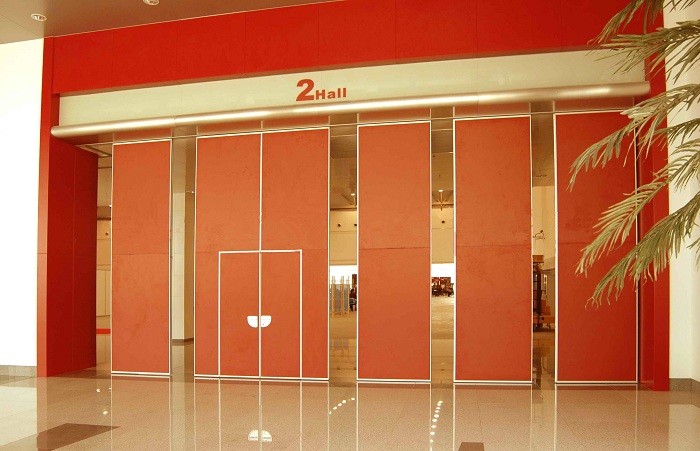

Wooden Surface Operable Soundproof Partition Wall for Exhibition Centre

Wooden Surface Operable Soundproof Partition Wall for Exhibition Centre

Szczegóły Produktu:

Place of Origin: Guangdong
Nazwa handlowa: BUNGE
Orzecznictwo: ISO9001
Model Number: Series 65 mm exhibition partition walls

Zapłata:

Minimum Order Quantity: 10 squaremeters
Cena: 82 / 118 dollars per square meter
Packaging Details: Carton package, MDF batten on four section sides , foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 squaremeters per month
Najlepsza cena Kontakt

Szczegóły informacji

Panel width: 500 mm--1220 mm (Accept Customized) Material: MDF+Aluminum
Application: Hotel,office ,conference room Color: Color Selective (Customized)
Thickness: 65 mm(2 9/16inch) STC conffcient: 32/50db
Feature: Voice Insulation Finishing: Melanimine,fabric,leather etc.
High Light:

movable walls on wheels

,

movable partitions systems

opis produktu

Wooden Surface Operable Soundproof Partition Wall for Exhibition Centre

Wooden Surface Operable Sound Proofing Partition Walls for Exhibition Centre



Features:



1. Large selection of standard finishes



2. Retractable top and bottom seals retract for easy movement



3. Deep interlocking vertical seals prevent sound leaks and help to align the panels during set-up



4. No floor track



5. Quick sight and sound division with a simple pull-and-latch operation

Wooden Surface Operable Soundproof Partition Wall for Exhibition Centre 0



Specification

1> sound proof board is modernized decoration style. It can separate the space speedly and

conveniently. And it has sound insulation and heat insulation and fireproof function;



2> The Partition Board is made from high density s/s frame, special made rubber, excellent sound

insulation cotton and finish board etc. the finish board is flat and hard;



3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the

board can be stored in may different ways;



4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the

same plane with the ceiling decoration. It won’t affect the whole decoration style;

Wooden Surface Operable Soundproof Partition Wall for Exhibition Centre 1



Bunge Operable Wall Systems-Technical Information

Item Movable Partition Wall
Material Melamine, Glass, Fabric,MDF
Type Tempered Glass Partition Wall
Acoustic Folding Partition
Surface Finish 1. MDF Base board with Melamine Finish
2. MDF board with Fabric Or Leather Finish
3. Plywood Or MDF base board without any finish
Size and Design Customized
Opening Style Folding
Structure Aluminum track, Trolley bearing, Acoustic Door Panel
Series Thickness (mm) Applied height (m)



Sound Insulation(db)

Referenced Weight
65 65 2.0~4.5 32-36 30kg/m2
80 80 3.0~6.8 35-45 35kg/m2
100 100 5.0~8.0 43-53 45kg/m2
125 125 7.2~13.3 53-60 65kg/m2
Package
Carton package, MDF batten on four section sides , foam board on both front face.
Installation Easy Installation, Provide the installation instruction
Application Meeting room, dining hall, exhibition hall, Function room,office etc.
Delivery Time 35-45 days after receiving the deposit and confirming the shop drawing
Advantages 1.Good performance of sound insulation, thermal insulation and Fire prevention
2.Save much space for your building
3. No tracks on the floor, it’s easy to install and remove
4.Beautiful appearance, it is widely used in many spaces, such as meeting room,dining hall, exhibition hall, Function room and office
5. We can add single or double doors on the board for convenience
6. Supplied our products for many projects all over the world





Wooden Surface Operable Soundproof Partition Wall for Exhibition Centre 2

Suitable used in:



Soundproof movable partitions can be used to Convention Centers, Gymnasiums, Religious Facilities, Hotel, Auditoriums, Corporate Training Facilities, Civic or Exposition Halls, Schools, Banquet Facilities etc. Soundproof movable partition systems, there are no more barriers to maximizing the potential of your available building spaces.

Wooden Surface Operable Soundproof Partition Wall for Exhibition Centre 3
